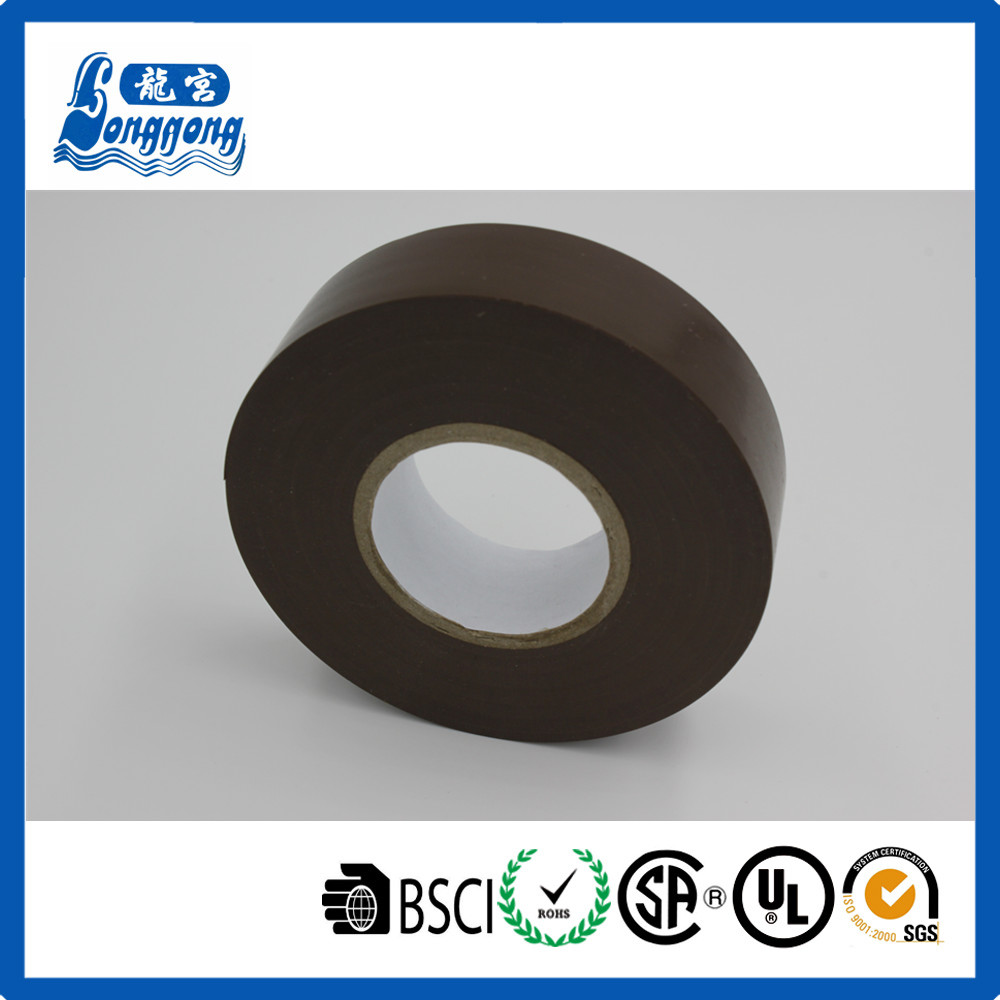

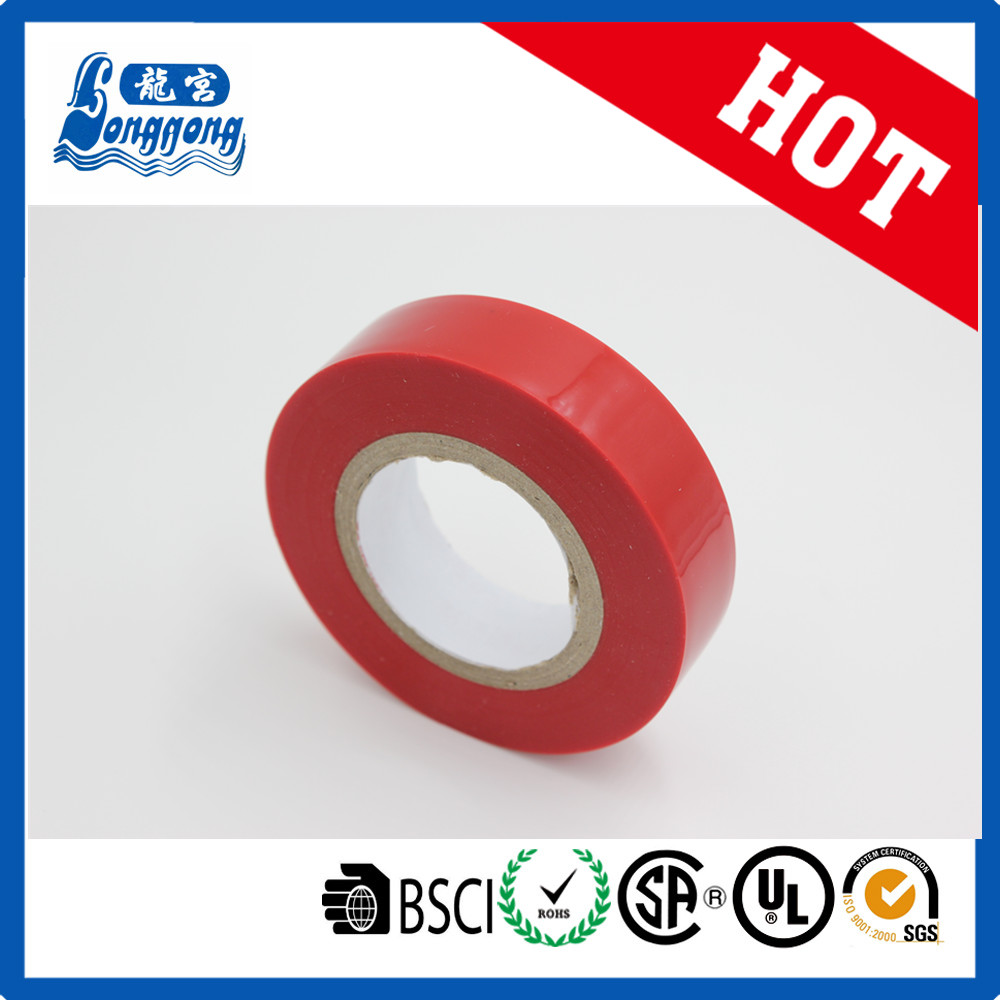

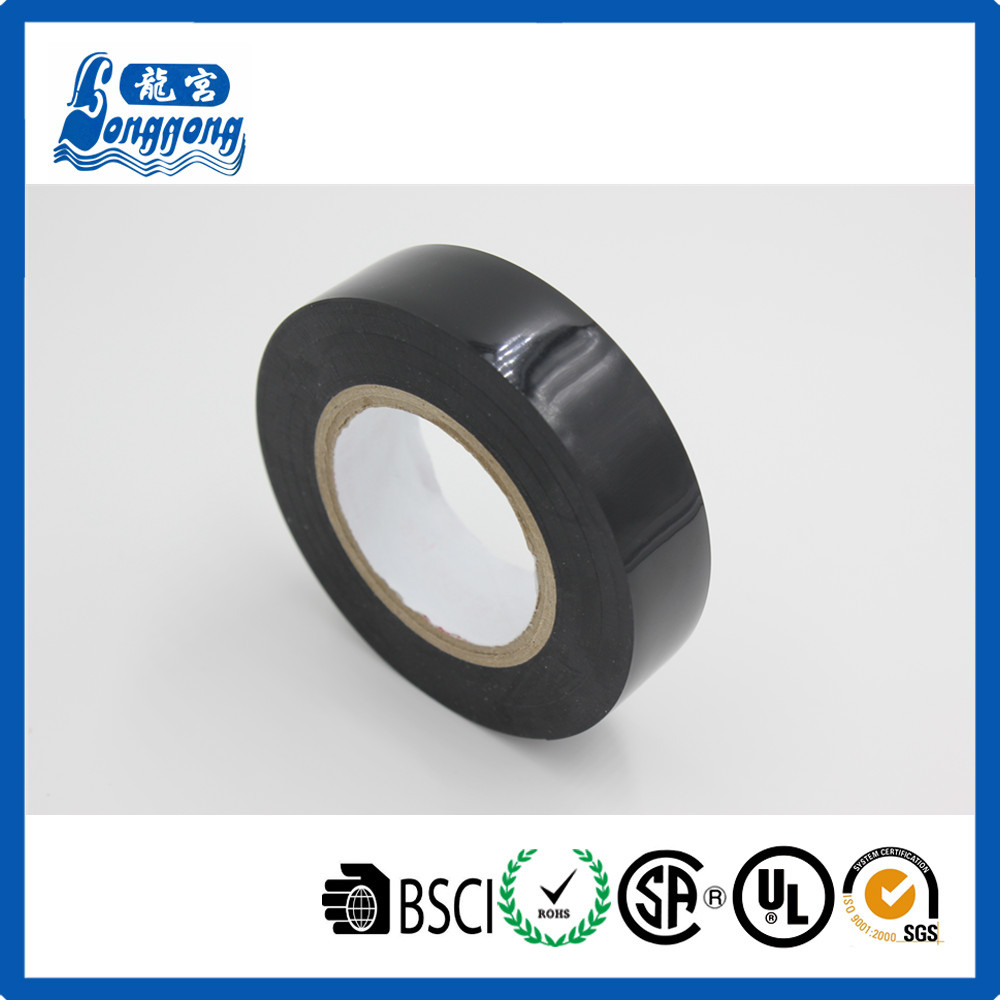

High Tenacity PVC Insulating Rubber Tape

Basic Info

Model No.: LGN007 200mic X 3/4'' x 20 Yards

Application: Winding Wire Coating Insulation, Electrical Winding Insulation

Type: Insulation Tape

Chemistry: Hybrid Insulation

Material: Rubber

Maximum Voltage: 20KV~100KV

Classification: Hybrid Insulation Materials

Certification: SGS, ISO9001, UL

H.S Code: 3919109900

Color: White,Black,Grey,Silver,Red,Yellow,Green,Blue

Enlongation(%): 110%~220%

Tensile Strength(n/cm): 23.5~39.5

Product Description

High Tenacity PVC Insulating Rubber Tape

Product Description

1. Use Methods:

Pvc Electrical Tape with enough force to semi overlapping winding, in the tape of the joint should be wrapped in

outside the end of the wire, and then retraced, to prevent puncture. when wrapping the last layer,not stretch

the tensile,to prevent tilting of the head.

2. MATERIAL

PVC Electrical Tape is based on a soft PVC film, coated with an aggressive rubber-resin adhesive with flame retardant and good

aging characteristics. Excellent conformability and high elongation at break. It is suitable for use between 0 to 80 °C., for

insulation electric wire & cable and automobile wiring.

3. APPLICATION on WHERE:

1. PVC Electrical Tape is used for insulation protective handling to avoid connecting with over ground curve or others electrified

body,personal accident and short circuit fault caused by the small animal. For use as electrical insulation on joints and splices in

wires and cables,bundling and reinforcing,etc.

2. PVC Electrical Tape is used for protecting the electrified bare conductor that passes the tree and protect it from short circuit

when through the channel.

PRODUCTION

PVC Insulating Tape

TEMPERATURE HUMIDITY

23℃×50%RH

COLOR

WHITE

1

TOTAL THICKNESS (mm)

0.185

0.177

2

TENSILE STRENGTH(N/cm)

39.5

33.5

3

ELONGATION AT BREAK (%)

289

210

4

ADHESION TO STEEL (N/cm)

2.0

1.9

5

ADHESION TO BACKING (N/cm)

2.01

1.86

6

DIELECTRIC STRENGTH (KV/mm)

53.5

54.3

7

FLAME RESISTANCE

NON-FLAME RESISTANCE

NON-FLAME RESISTANCE


PVC Electrical Tape
PVC Electrical Tape
PVC Electrical Tape
PVC Electrical Tape

PVC Electrical Tape

Packaging Detail:

each roll wrap with color plastic label. 10 pcs Tower packing. 500/600 rolls per carton.

Super Shining Plus PVC Electrical Tape

Shipping Details:

Super Shining Plus PVC Electrical Tape

Our Services

Company to entertain customers photo-realistic

Super Shining Plus PVC Electrical Tape

Company Information

SHIJIAZHUANG LONGGONG PLASTIC PRODUCTS CO., LTD is a manufacturer of PVC tapes from China, with 200 workers

in 5 product lines, offering all kinds of PVC insulation electrical tapes, Bopp Packing Tape, Pvc Floor Marking Tape,the self

amalgamating tape for insulating, protecting, packing, marking and masking purpose.

Therefore we own the unique advantages as below compared to our competitors :

1. WE ARE REAL FACTORY NOT TRADING COMPANY.

2. PRODUCING PVC Tape, BOPP PACK TAPE,FABRIC CLOTH TAPE,Self Fusing Tape SINCE 1994.

3. 5 COATING MACHINE LINE, 36 M/MINUTE. THE FASTEST IN CHINA.

4. DO INDEPENDENT LAB TEST FOR EACH ORDER EACH DAY.

Super Shining Plus PVC Electrical Tape

Super Shining Plus PVC Electrical Tape

Producing Process

1. 5 Coating Lines:

Super Shining Plus PVC Electrical Tape

2. Cutting workshop:

Super Shining Plus PVC Electrical Tape

3. Package workshop:

Super Shining Plus PVC Electrical Tape

4. Testing equipment

Super Shining Plus PVC Electrical Tape

5. Carton Fair

Super Shining Plus PVC Electrical Tape

Contact Way

Super Shining Plus PVC Electrical Tape

Contact us if you need more details on 3/4''Pvc Insulation Tape. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Finish PVC Electrical Tape、PVC Rubber Tape. If these products fail to match your need, please contact us and we would like to provide relevant information.
