Home > Products > PVC Tape > Finished Rolls PVC Tape > 17.5mm Electric Insulating Tape

Basic Info

Model No.: LGN011

Application: Winding Wire Coating Insulation, Electrical Winding Insulation

Type: Insulation Tape

Chemistry: Hybrid Insulation

Material: Rubber

Maximum Voltage: 20KV~100KV

Classification: Hybrid Insulation Materials

Certification: SGS, ISO9001, UL

H.S Code: 3919109900

Color: White,Black,Grey,Silver,Red,Yellow,Green,Blue

Enlongation(%): 110%~220%

Tensile Strength(n/cm): 23.5~39.5

Product Description

17.5mm Electric Insulating Tape

Product Description

1. APPLICATION on WHERE:

Pvc Electrical Tape for use as electrical insulation on joints and splices in wires and cables,bundling and reinforcing,etc.

and used for protecting the electrified bare conductor that passes the tree and protect it from short circuit when through the

channel.


2. MATERIAL

PVC Electrical Tape is based on a soft PVC film, coated with an aggressive rubber-resin adhesive with flame retardant and good

aging characteristics. Excellent conformability and high elongation at break. It is suitable for use between 0 to 80 °C., for

insulation electric wire & cable and automobile wiring.

PRODUCTION

PVC INSULATING TAPE

TEMPERATURE HUMIDITY

23℃×50%RH

COLOR

WHITE

1

TOTAL THICKNESS (mm)

0.185

0.177

2

TENSILE STRENGTH(N/cm)

39.5

33.5

3

ELONGATION AT BREAK (%)

289

210

4

ADHESION TO STEEL (N/cm)

2.0

1.9

5

ADHESION TO BACKING (N/cm)

2.01

1.86

6

DIELECTRIC STRENGTH (KV/mm)

53.5

54.3

7

FLAME RESISTANCE

NON-FLAME RESISTANCE

NON-FLAME RESISTANCE

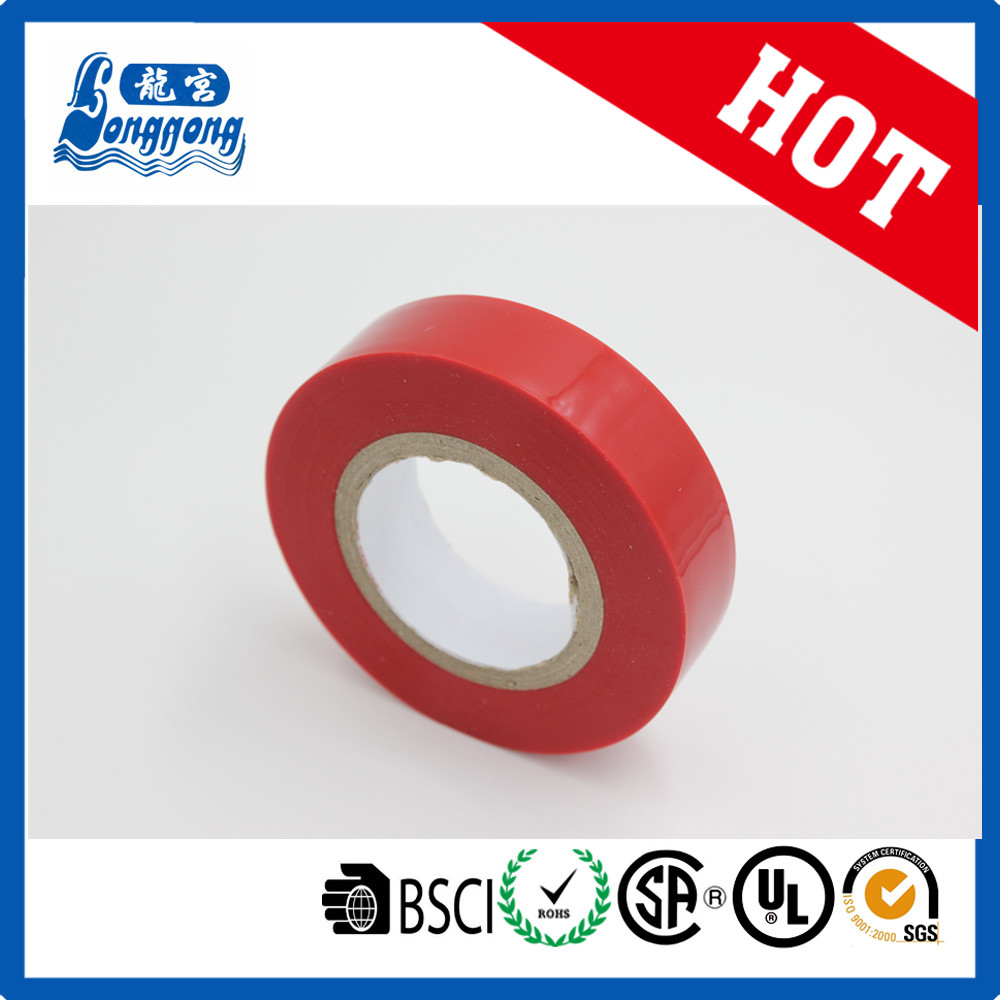

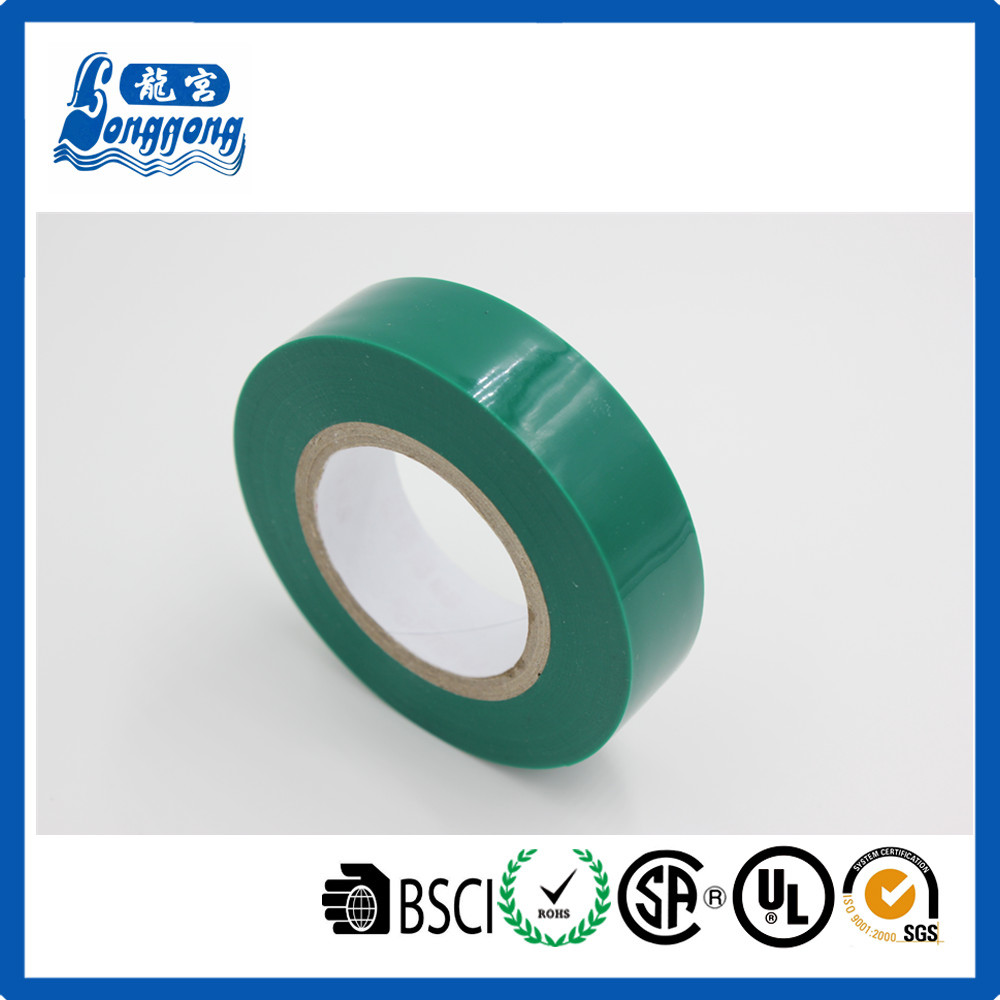

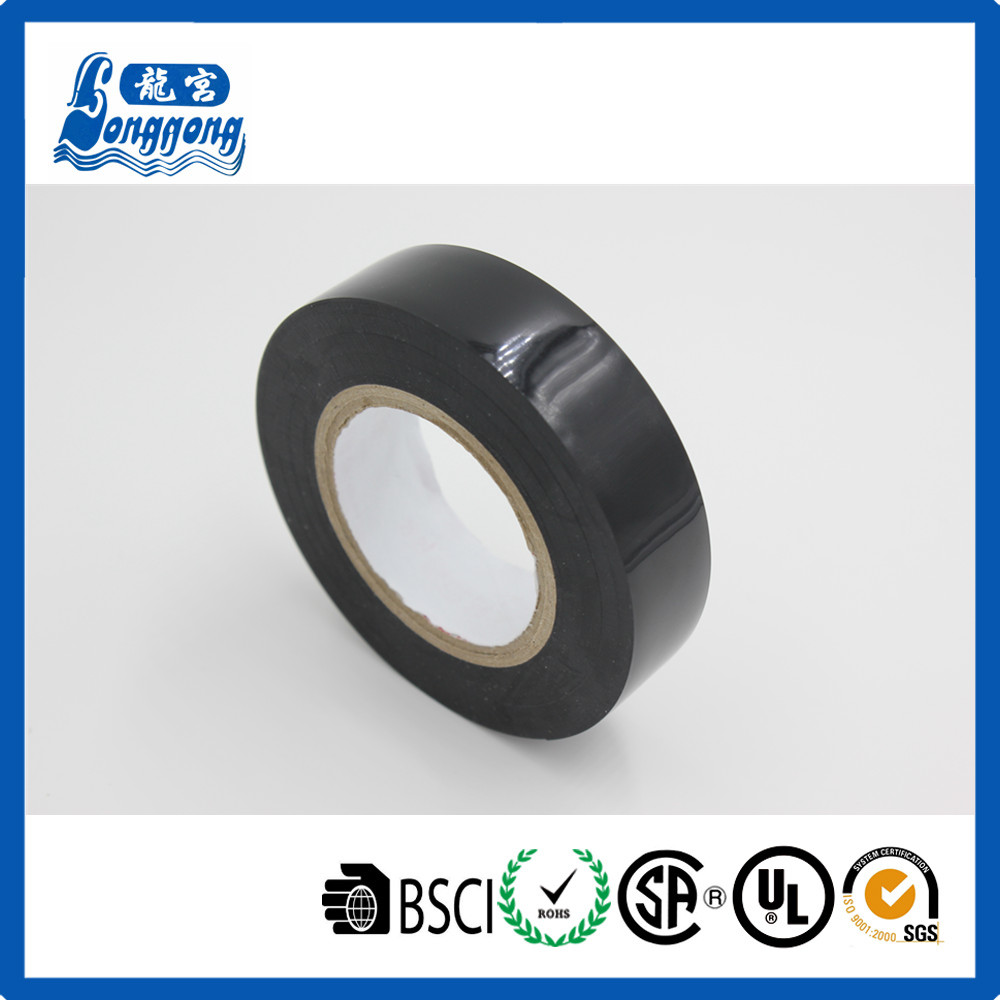

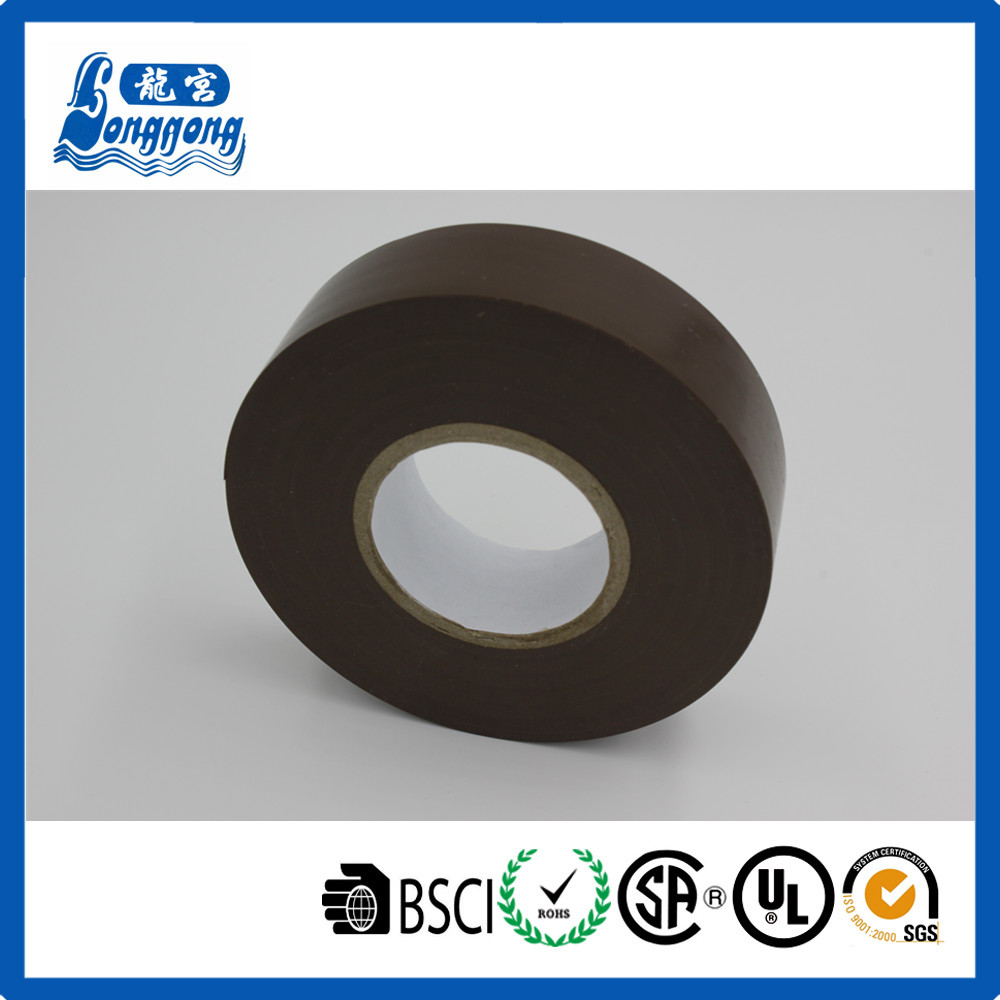

PVC Electrical Tape
PVC Electrical Tape
PVC Electrical Tape
PVC Electrical Tape

PVC Electrical Tape

Packaging Detail:

each roll wrap with color plastic label. 10 pcs Tower packing. 500/600 rolls per carton.

Small Electric Insulation TapeSmall Electric Insulation TapeSmall Electric Insulation TapeSmall Electric Insulation TapeSmall Electric Insulation TapeSmall Electric Insulation Tape

Super Shining Plus PVC Electrical Tape

Shipping Details:

Super Shining Plus PVC Electrical Tape

Our Services

Company to entertain customers photo-realistic

Super Shining Plus PVC Electrical Tape

Company Information

SHIJIAZHUANG LONGGONG PLASTIC PRODUCTS CO., LTD

Therefore we own the unique advantages as below compared to our competitors :

1. WE ARE REAL FACTORY NOT TRADING COMPANY.

2. PRODUCING PVC Tape, BOPP PACK TAPE,FABRIC CLOTH TAPE,Self Fusing Tape SINCE 1994.

3. 5 COATING MACHINE LINE, 36 M/MINUTE. THE FASTEST IN CHINA.

4. DO INDEPENDENT LAB TEST FOR EACH ORDER EACH DAY.

Super Shining Plus PVC Electrical Tape

Super Shining Plus PVC Electrical Tape

Producing Process

1. 5 Coating Lines:

Super Shining Plus PVC Electrical Tape

2. Cutting workshop:

Super Shining Plus PVC Electrical Tape

3. Package workshop:

Super Shining Plus PVC Electrical Tape

4. Testing equipment

Super Shining Plus PVC Electrical Tape

5. Carton Fair

Super Shining Plus PVC Electrical Tape

Contact Way

Super Shining Plus PVC Electrical Tape

Contact us if you need more details on 17.5mm Pvc Insulation Tape. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 17.5mm Finished PVC Electrical Tape、Small PVC Rubber Tape. If these products fail to match your need, please contact us and we would like to provide relevant information.
