High Glue PVC Insulating Big Tape

Packaging:
Standard Exporting Package
Productivity:
40 Tons / Day
Brand:
Longgong
Transportation:
Ocean,Land,Rail Transport
Place of Origin:
Shijiazhuang City,Hebei P.R,China
Supply Ability:
40 Ton/day
Certificate:
ROHS,ISO 9001,REACH,CIQ,SGS
  • Ms. CHRISTINA ZHANG

Basic Info

Model No.: LGN32

Application: Insulating Varnish, Motor, Electrical Base, Shell, Winding Wire Coating Insulation, Electrical Winding Insulation

Type: Insulation Tape

Chemistry: Hybrid Insulation

Material: Rubber

Thermal Rating: 200 200

Maximum Voltage: <10KV

Classification: Hybrid Insulation Materials

Certification: SGS

Brand Name: Longgong

Rated Voltage: 6.5-8kv

Tensile Strength: 16N/cm

Color: White,Black,Red,Blue,Green,Yellow

Elongation At Break: 150%-200%

Adhesive To Steel: 1.8-3.3N/19mm

Thickness: 0.1mm-0.2mm

Length: 6-60m

Width: 1250mm

Product Description

High Glue PVC Insulating Big Tape

Features

Soft PVC film, with strong retractile, easy to tear , non-deteriorating and smooth adhesion.

Material

Pvc Electrical Tape composed of soft film and rubber based is characterized by excellent insulation,good flame retardant,resistance to voltage and low temperature, it is used for insulation protection of electrical wires and

harness tape in automobile industry.

Usage

1. It is used for insulation protective handling to avoid connecting with over ground curve or others electrified body, personal

accident and short circuit fault caused by the small animal. For use as electrical insulation on joints and splices in

wires and cables, bundling and reinforcing,etc.

2. It is used for protecting the electrified bare conductor that passes the tree and protect it from short circuit when

through the channel.

3. it used for protecting the electrified body from curdling the dew, pollution flash-over and corrosion.

Specification

Type

PVC Tape

Color

White,Black,Yellow,Red,Blue,Green

Thickness

0.1-0.2mm

Width

1250mm

Length

6-50m

Peeling Strength

1.6-1.8(N/cm)

Tensile Strength

16-28(N/cm)

Elongation at Break

150%-200%

Voltage Breakdown

≥6.5KV

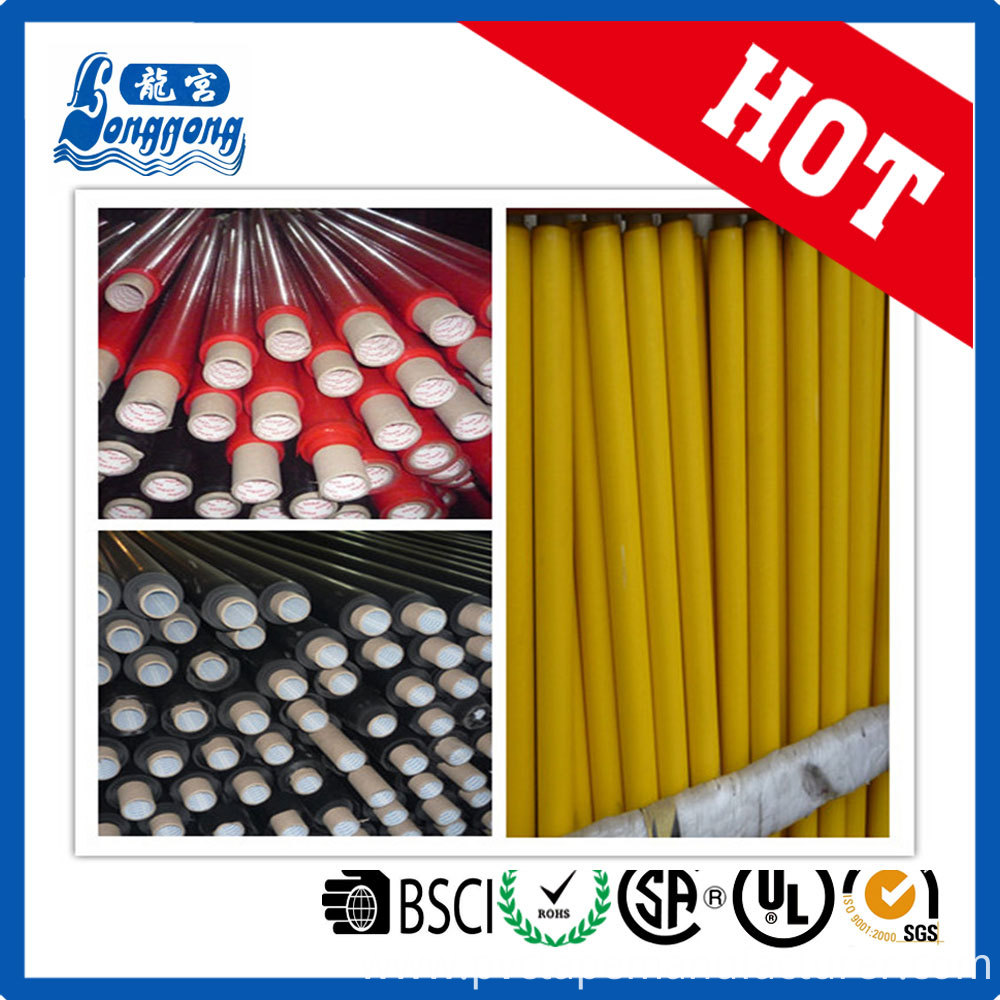

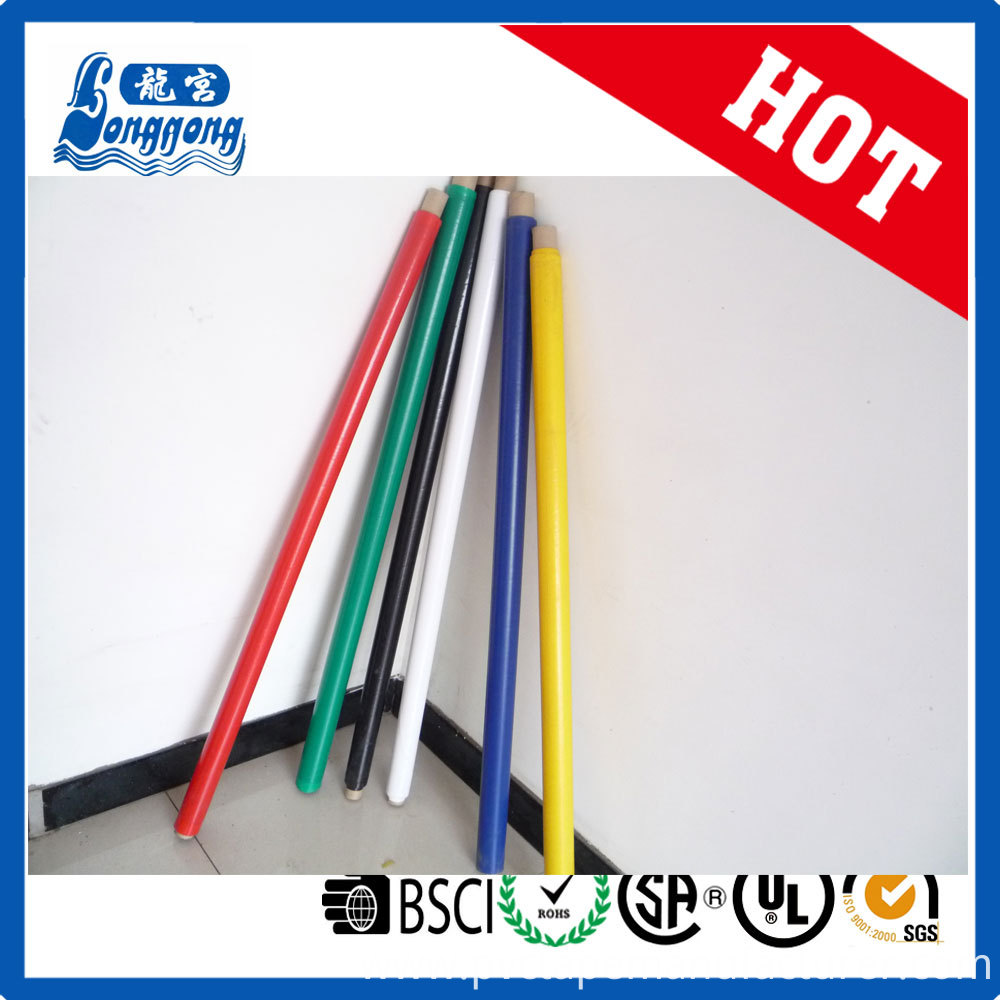

pvc insulation jumbo rolls
jumbo rolls pvc tape

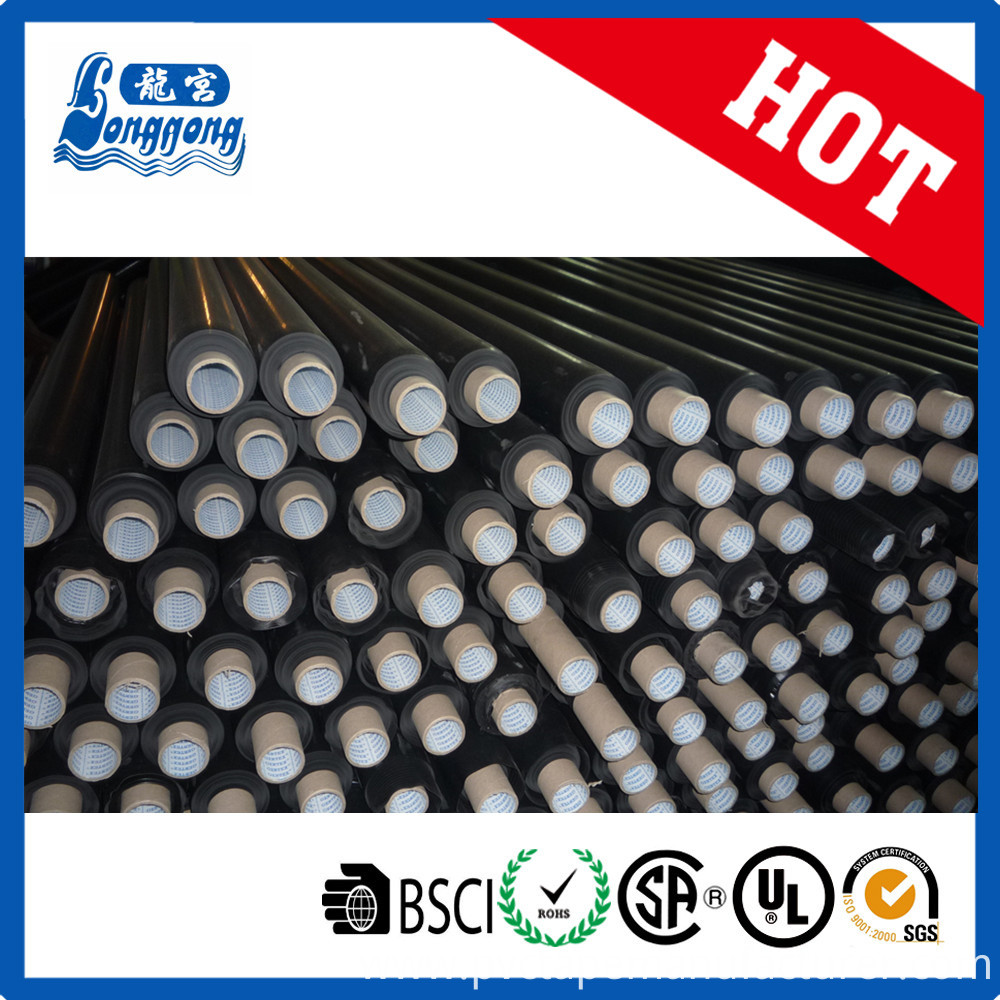

Log PVC Tape Of Insulating
Log PVC Tape Of Insulating
Log PVC Tape Of Insulating

Log roll PVC TapePVC Tape log rollElectrical Tape log rollInsulation Tape log rollPackage

1300 mm PVC Big Electrical Insulating Tape : Marked with colored paper core and plastic paper wrapped each roll,

4/6/9/12 Rolls be packed into a carton.

PVC Electrical Tape log rollBig PVC Tape

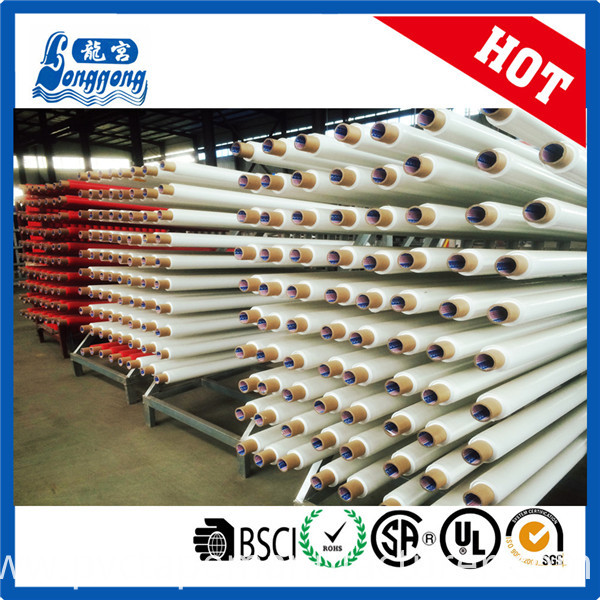

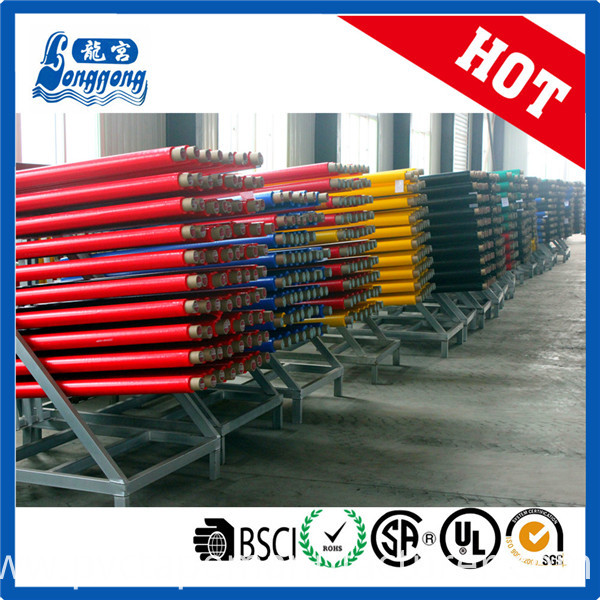

Production Flow

1300mm PVC Big Electrical Insulating Tape

Log quality PVC Tape

Testing Equipment

PVC High quality Tape

Company Information

SHIJIAZHUANG LONGGONG PLASTIC PRODUCTS CO., LTD

1. We are manufacturer since 1994, not trading company, can export to customers directly, have exporting experience more than 20 years.

2. Give our drawback to customers, so price 4-5% lower than other suppliers. 3. Would reply within 12 hours, service first and sincerely!

3. Can give customers commission.

1300mm PVC Big Electrical Insulating Tape

1300mm PVC Big Electrical Insulating Tape
